Easy-Gully

KMC has developed the the Easy Gully pot series to meet the requirements of the management bodies, designers and enterprises to have compact, cost-effective, almost maintenance-free gully traps that can be installed easily and quickly.

The Easy Gully pot series can be used on either waste or rain water. Besides the Easy Gully pots, KMC has developed purposely-allocated cast iron covers and drains with telescopic function that reduces the installation costs and the subsequent readjustment, if required.

Application fields

Single or series connection to the sewage system

Easy Gully pot for individual or multiple road drains for rainwater collection

For pipes up to OD/DN 300

Features

Easy Gully pots type: siphoned Easy Gully pot

Diam. Easy Gully pots: : 300, 400, 600

Diam. compatible pipes: : 160, 200, 250, 315

Available dimensions

Polyethylene manholes Easy-Gully:

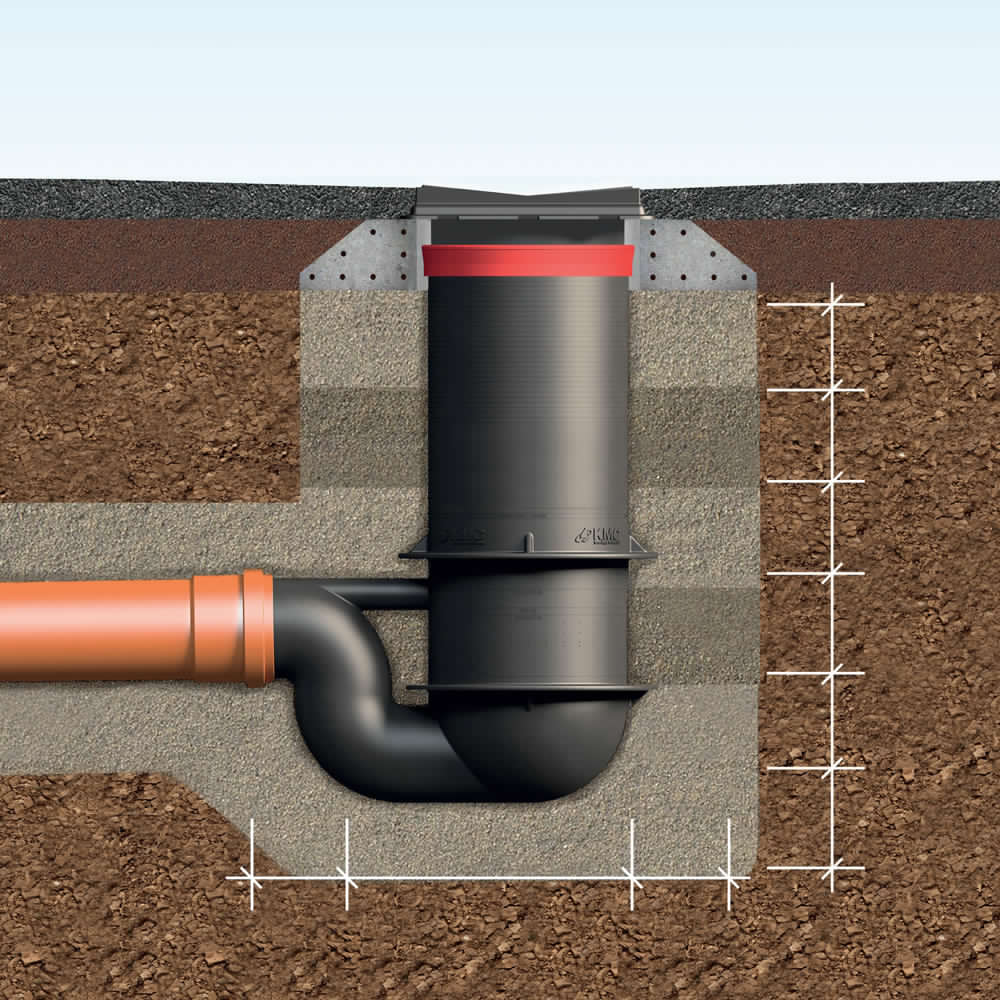

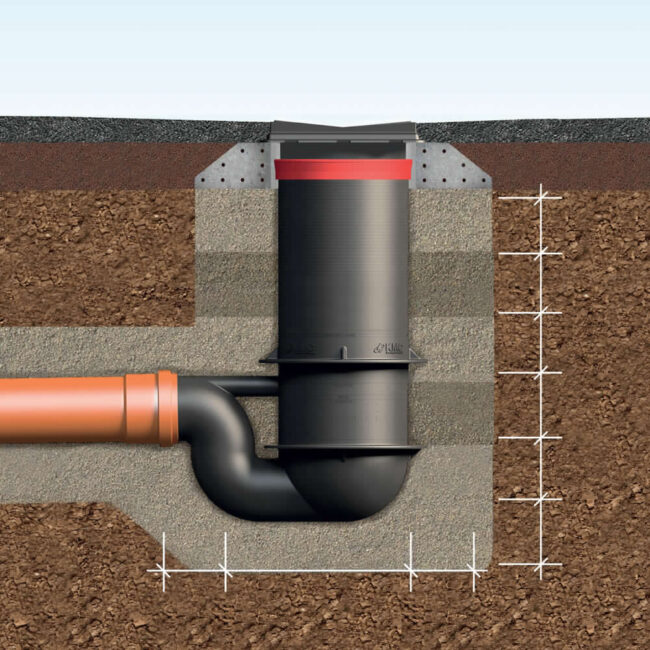

The EASY GULLY DN 300 pot  has been developed taking very much care about the final volume, which has to be reduced as much as possible in order to meet  the requirements of the engineers, of the installation and maintenance works.



CodeDN (mm)DescriptionOutlet DN (mm)Nr.Ingr.ScaleDrawSpecific
031-BEG-071-16315

KMC-"Easy Gully" polyethylene gully pot

160 mmmultinoDownloadDownload

The EASY GULLY DN 400 pot has a very smooth surface inside, with no sharp edges, as all other pots of the series. Their hemispherical bottom prevents from clogging. Thank s to the big volume of water storage and to the small surface, the evaporation is reduced to the minimum, thereby avoiding the smelling gas coming from the main duct.





CodeDN (mm)DescriptionOutlet DN (mm)Nr.Ingr.ScaleDrawSpecific
040-BEG-075-20400

KMC-"Easy Gully" polyethylene gully pot

200 mmmultinoDownloadDownload

The EASY GULLY DN 600 pot meets the requirements of the contracting authority and both of the managing and maintenance service, thereby offering an advantageous and universal system, guaranteeing at the same time great reliability in terms of life span and of an extremely ease in management and handling. The system has been developed in order to reduce to the minimum the maintenance work on site making it a competitive system and ensuring a perfect outcome of the work.



CodeDN (mm)DescriptionOutlet DN (mm)Nr.Ingr.ScaleDrawSpecific
060-BEG-111-20600

KMC-"Easy Gully" polyethylene gully pot

200 mmmultinoDownloadDownload
060-BEG-110-31600

KMC-"Easy Gully" polyethylene gully pot

315 mmmultinoDownloadDownload
060-BEG-111-25600

KMC-"Easy Gully" polyethylene gully pot

250 mmmultinoDownloadDownload

Advantages versus the conventional systems

It can be handled and installed manually

Thanks to its lightness and easy installation, the Easy Gully pot allows for savings on site which can be calculated in working days. This makes the system extremely advantageous.

No clogging

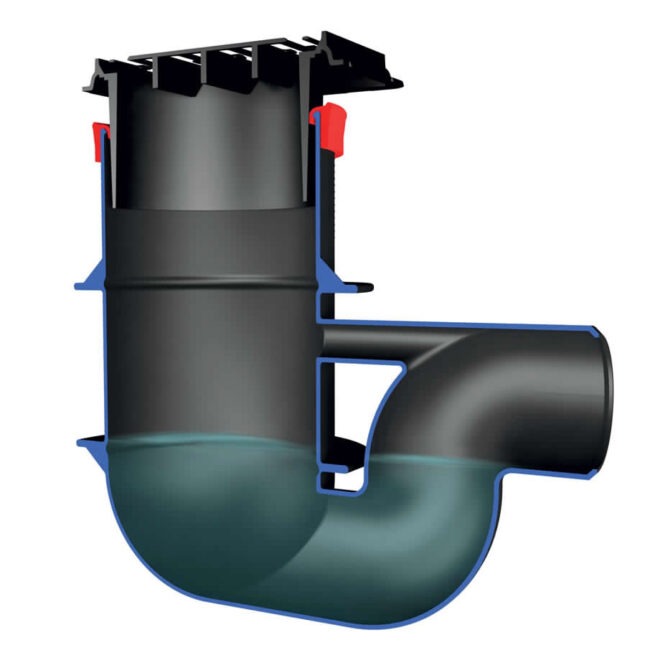

The Easy Gully pot has an edge-less hemispherical bottom which prevents storing up and clogging.

Less manteinance required

As the section reduces and at equal pressure, the spherical bottom increases the output thrust, thus creating a vortex which allows keeping the base always clean.

Reduced management cost
The siphon is open, thus allowing for inspection without any need to remove the plugs on the clogged duct, which is therefore under pressure.
Reduced smell
The volume of water inside the Easy Gully pot must go below the minimum overspilling level to allow for the exit of gas from the main network. The impermeable structure and the wide surface of the Easy Gully pot make almost impossible the evaporation of the quantity of water which would take the level the threshold
Reduced volume
Unlike the conventional concrete systems, where the plastic material curve or the syphon is mounted inside, the Easy Gully pot series is directly installed in the ground. Furthermore, the circular layout allows for pointing the outlet of the inspection chamber directly in the direction of the duct and eliminates the costly bends and special parts, which are usually required and often generate clogging.
Lower cost
The Easy Gully pot is supplied ready for use. No heavy means are required and the complete installation only takes half an hour.

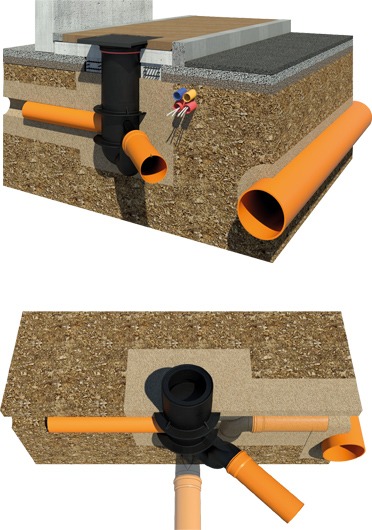

System KMC

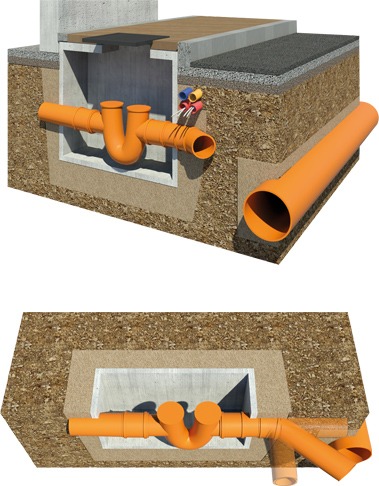

Traditional system

Why choosing Easy-Gully?

The Easy Gully pot series, developed in diameters 300 – 400 – 600 has been designed to settle the most usual duration and maintenance issues related to clogging and to the smell released by the conventional systems. The principles utilized by KCM in standardizing such series have been as follows:

Reduced maintenance and purchasecost.

Easy quick installation.

Great static resistance to stress.

Perfect water-tightness.

Compatibility with the networks which are already implemented and reduced of the volume.

Long life spam.

Who is the Easy-Gully series for?

Designers Who show great sense of responsibility towards their clients, with special attention to the technical, economic and environmental aspects.


Private citizens Who intend to settle the issue of the return of the gases from the public network and eliminate the sewage smell in their home or property once and for all, while minimizing the cleaning expenses.

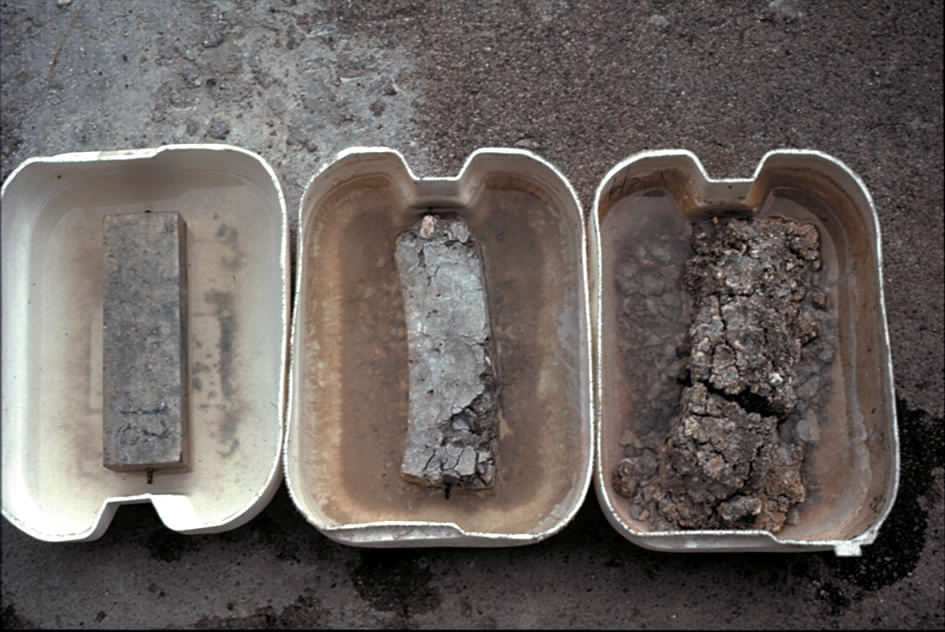

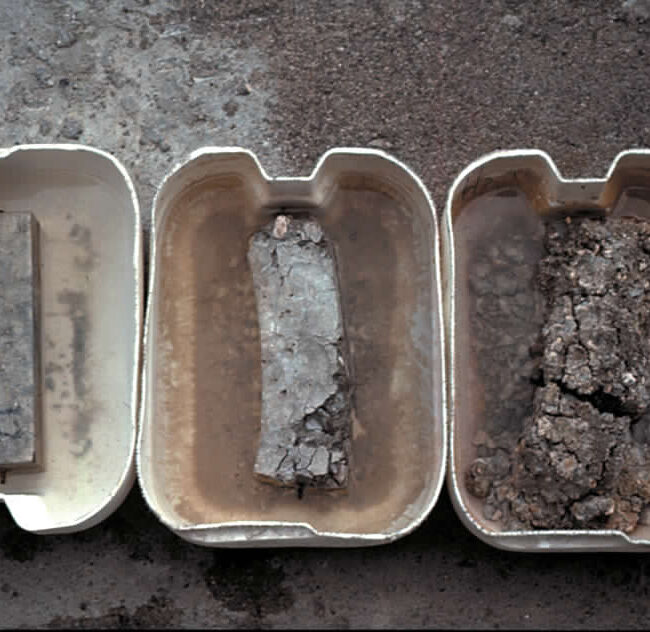

Providers of Public and/or Private sewage networks Who intend to adopt and standardize an almost maintenance-free, self-cleaning sewage inspection chamber of limited cost, which cannot be attacked by the sulphides and which protects the final user from the return of the smell.

Providers of Public and/or Private rainwater and street water networks Who intend to adopt a self-cleaning inspection chamber that cannot be attacked by the chlorides in order to minimize the cleaning expenses while significantly reducing the issues of clogging and – subsequently -of flooding.

Gallery
