Vasche di accumulo tipo KMC
Ogni progetto richiede una soluzione individuale. Grazie al continuo sviluppo ed al grande know-how maturato in oltre 20 anni, siamo in grado di utilizzare i nostri prefabbricati per realizzare elementi fino ad ora impensabili. I campi di applicazione per le vasche sono molteplici e possono variare da vasche di sfangazione, vasca di onda nera, semplici cisterne per l’ accumulo di acqua potabile fino a vasche di stoccaggio antincendio o accumulo acque piovane. In funzione del campo di applicazione sono possibili diverse esecuzioni
Campi di applicazione
- Vasca di sfangazione
- Vasca di onda nera
- Vasca di stoccaggio antincendio
- Cisterna per l’accumulo di acqua potabile
Caratteristiche
- Vasca monolitica in cemento armato di forma circolare, ellittica e ovale fino a 38 m3
- oppure esecuzione in vasca in monoblocchi prefabbricati con contenuto utile da 50 a 1000 m3
Vantaggi rispetto ai sistemi tradizionali
Incredibile capacità di contenimento.
Perchè scegliere Vasche di accumulo tipo KMC ?
Costi d’installazione contenuti grazie ai tempi di montaggio rapidissimi.
Dimensioni disponibili
Impianti di trattamento Vasche di accumulo tipo KMC:

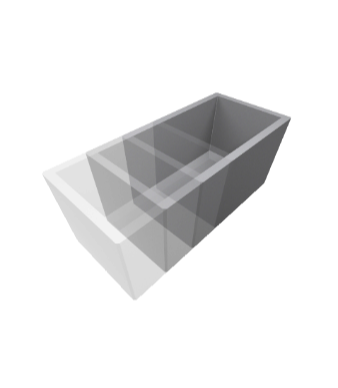

Vasca monolitica in cemento armato di forma rettangolare. Contenuto utile da 8 fino a 60 m3. Di seguito le singole varianti:
| Codice | Portata (l/s) | Contenuto utile (m3) | Dimensioni esterne (cm) | Profondità d'installazione (cm) | Profondità d'entrata (cm) | Tubo d'ingresso (mm) | Peso max (ton) | Peso totale (ton) | Accumulo olii (m3) | Disegno | Capitolato |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KMC-SED-RE-250-0250-180-08 | 8.1 | 0250X250X180 | 241 | 6.58 | 9.44 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0300-180-09 | 9.88 | 0250X300X180 | 241 | 7.44 | 10.92 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0250-230-10 | 10.71 | 0250X250X230 | 291 | 7.85 | 10.71 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0250-245-11 | 11.49 | 0250X250X245 | 306 | 8.22 | 11.08 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0350-180-11 | 11.67 | 0350x250x180 | 241 | 8.31 | 12.41 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0300-230-13 | 13.07 | 0300x250x230 | 291 | 8.85 | 12.33 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0250-280-13 | 13.34 | 0250X250X280 | 341 | 9.08 | 11.94 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0400-180-13 | 13.46 | 0400x250x180 | 241 | 9.18 | 13.9 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0300-245-14 | 14.03 | 0300x250x245 | 306 | 9.26 | 12.74 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0450-180-15 | 15.25 | 0450x250x180 | 241 | 10.04 | 15.38 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0350-230-15 | 15.43 | 0350x250x230 | 291 | 9.85 | 13.95 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0300-280-16 | 16.27 | 0300x250x280 | 341 | 10.2 | 13.68 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0350-245-16 | 16.56 | 0350x250x245 | 306 | 10.3 | 14.4 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0500-180-17 | 17.04 | 0500x250x180 | 241 | 10.91 | 16.87 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0550-180-18 | 18.83 | 0550x250x180 | 241 | 11.78 | 18.36 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0400-245-19 | 19.09 | 0400x250x245 | 306 | 11.34 | 16.06 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0350-280-19 | 19.21 | 0350x250x280 | 341 | 11.33 | 15.43 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0450-230-20 | 20.15 | 0450x250x230 | 291 | 11.85 | 17.19 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0600-180-20 | 20.62 | 0600x250x180 | 241 | 12.65 | 19.84 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0450-245-21 | 21.62 | 0450x250x245 | 306 | 12.37 | 17.71 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-400-280-22 | 22.14 | 0400x250x280 | 341 | 12.46 | 17.18 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0650-180-22 | 22.41 | 0650x250x180 | 241 | 13.51 | 21.32 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0500-230-22 | 22.51 | 0500x250x230 | 291 | 12.85 | 18.81 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0500-245-24 | 24.16 | 0500x250x245 | 306 | 13.41 | 19.37 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0700-180-24 | 24.2 | 0700x250x180 | 241 | 14.38 | 22.81 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0550-230-24 | 24.87 | 0550x250x230 | 291 | 13.84 | 20.42 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0450-280-25 | 25.07 | 0450x250x280 | 341 | 13.58 | 18.92 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0750-180-25 | 25.98 | 0750x250x180 | 241 | 15.25 | 24.3 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0550-245-26 | 26.69 | 0550x250x245 | 306 | 14.45 | 21.03 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0600-230-27 | 27.23 | 0600x250x230 | 291 | 14.84 | 22.03 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0800-180-27 | 27.77 | 0800x250x180 | 241 | 16.11 | 25.78 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0500-280-28 | 28.01 | 0500x250x280 | 341 | 14.71 | 20.67 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0600-245-29 | 29.22 | 0600x250x245 | 306 | 15.49 | 22.68 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0850-180-29 | 29.56 | 0850x250x180 | 241 | 16.98 | 27.27 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0650-230-29 | 29.59 | 0650x250x230 | 291 | 15.84 | 23.65 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0550-280-30 | 30.94 | 0550x250x280 | 341 | 15.84 | 22.42 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0900-180-31 | 31.35 | 0900x250x180 | 241 | 17.85 | 28.76 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0650-245-31 | 31.75 | 0650x250x245 | 306 | 16.53 | 24.34 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0700-230-31 | 31.95 | 0700x250x230 | 291 | 16.84 | 25.27 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0950-180-33 | 33.14 | 0950x250x180 | 241 | 18.71 | 30.24 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0600-280-33 | 33.88 | 0600x250x280 | 341 | 16.96 | 24.15 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0700-245-34 | 34.29 | 0700x250x245 | 306 | 17.56 | 25.99 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0750-230-34 | 34.31 | 0750x250x230 | 291 | 17.84 | 26.89 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1000-180-34 | 34.93 | 1000x250x180 | 241 | 19.58 | 31.72 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0800-230-36 | 36.67 | 0800x250x230 | 291 | 18.84 | 28.51 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1050-180-36 | 36.72 | 1050x250x180 | 241 | 20.45 | 33.21 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0650-280-36 | 36.81 | 0650x250x280 | 341 | 18.09 | 25.9 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0750-245-36 | 36.82 | 0750x250x245 | 306 | 18.6 | 27.65 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0850-230-39 | 39.03 | 0850x250x230 | 291 | 19.84 | 30.13 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0800-245-39 | 39.35 | 0800x250x245 | 306 | 19.64 | 29.31 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0700-280-39 | 39.75 | 0700x250x280 | 341 | 19.22 | 27.65 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0900-230-41 | 41.4 | 0900x250x230 | 291 | 20.84 | 31.75 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0850-245-41 | 41.88 | 0850x250x245 | 306 | 20.68 | 30.97 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0750-280-42 | 42.68 | 0750x250x280 | 341 | 20.34 | 29.39 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0950-230-43 | 43.76 | 0950x250x230 | 291 | 21.84 | 33.37 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0900-245-44 | 44.42 | 0900x250x245 | 306 | 21.72 | 32.63 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0800-280-45 | 45.61 | 0800x250x280 | 341 | 21.47 | 31.14 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1000-230-46 | 46.12 | 1000x250x230 | 291 | 22.84 | 34.98 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0950-245-46 | 46.95 | 0950x250x245 | 306 | 22.75 | 34.28 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1050-230-48 | 48.48 | 1050x250x230 | 291 | 23.84 | 36.6 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0850-280-48 | 48.55 | 0850x250x280 | 341 | 22.6 | 32.89 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1000-245-49 | 49.48 | 1000x250x245 | 306 | 23.79 | 35.93 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0900-280-51 | 51.48 | 0900x250x280 | 341 | 23.72 | 34.63 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1050-245-52 | 52.01 | 1050x250x245 | 306 | 24.83 | 37.59 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-0950-280-54 | 54.42 | 0950x250x280 | 341 | 24.85 | 36.38 | 0 | Scarica | Scarica | |||
| KMC-SED-RE-250-1000-280-57 | 57.35 | 1000x250x280 | 341 | 25.98 | 38.12 | 0 | Scarica | Scarica | |||
| KMC/SED/RE-250-1050-280-60 | 60.29 | 1050x250x280 | 341 | 27.1 | 39.86 | 0 | Scarica | Scarica |
Vasca monolitica in cemento armato di forma ovale. Contenuto utile da 7,5 fino a 60 m3. Di seguito le singole varianti:
| Codice | Portata (l/s) | Contenuto utile (m3) | Dimensioni esterne (cm) | Profondità d'installazione (cm) | Profondità d'entrata (cm) | Tubo d'ingresso (mm) | Peso max (ton) | Peso totale (ton) | Accumulo olii (m3) | Disegno | Capitolato |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KMC-SED-CU-250-0250-180-06 | 6.9 | 0250X250X180 | 241 | 5.48 | 7.88 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0300-180-08 | 8.69 | 0300X250X180 | 241 | 6.35 | 9.37 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0250-230-09 | 9.12 | 0250X250X230 | 291 | 6.54 | 8.94 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0250-245-10 | 9.79 | 0250X250X245 | 306 | 6.84 | 9.24 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0350-180-10 | 10.48 | 0350x250x180 | 241 | 7.22 | 10.86 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0250-280-11 | 11.36 | 0250X250X280 | 341 | 7.55 | 9.95 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0300-230-11 | 11.48 | 0300X250X230 | 291 | 7.53 | 10.55 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0400-180-12 | 12.27 | 0400x250x180 | 241 | 8.08 | 12.33 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0300-245-12 | 12.33 | 0300X250X245 | 306 | 7.88 | 10.9 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0350-230-13 | 13.85 | 0350x250x230 | 291 | 8.53 | 12.17 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0450-180-14 | 14.05 | 0450x250x180 | 241 | 8.95 | 13.82 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0300-280-14 | 14.3 | 0300X250X280 | 341 | 8.68 | 11.7 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0350-245-14 | 14.86 | 0350x250x245 | 306 | 8.92 | 12.56 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0500-180-15 | 15.84 | 0500x250x180 | 241 | 9.82 | 15.31 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0400-230-16 | 16.21 | 0400x250x230 | 291 | 9.53 | 13.78 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0350-280-17 | 17.23 | 0350x250x280 | 341 | 9.81 | 13.45 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0400-245-17 | 17.39 | 0400x250x245 | 306 | 9.96 | 14.21 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0550-180-17 | 17.63 | 0550x250x180 | 241 | 10.68 | 16.79 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0450-230-18 | 18.57 | 0450x250x230 | 291 | 10.53 | 15.4 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0600-180-19 | 19.42 | 0600x250x180 | 241 | 11.55 | 18.28 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0450-245-19 | 19.92 | 0450x250x245 | 306 | 11 | 15.87 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0400-280-20 | 20.17 | 0400x250x280 | 341 | 10.93 | 15.18 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0500-230-20 | 20.93 | 0500x250x230 | 291 | 11.53 | 17.02 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0650-180-21 | 21.21 | 0650x250x180 | 241 | 12.42 | 19.77 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0500-245-22 | 22.46 | 0500x250x245 | 306 | 12.03 | 17.52 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0700-180-23 | 23 | 0700x250x180 | 241 | 13.28 | 21.25 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0450-280-23 | 23.1 | 0450x250x280 | 341 | 12.06 | 16.93 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0550-230-23 | 23.29 | 0550x250x230 | 291 | 12.53 | 18.64 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0750-180-24 | 24.79 | 0750x250x180 | 241 | 14.15 | 22.74 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0550-245-24 | 24.99 | 0550x250x245 | 306 | 13.07 | 19.18 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0600-230-25 | 25.65 | 0600x250x230 | 291 | 13.53 | 20.26 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0500-280-26 | 26.03 | 0500x250x280 | 341 | 13.19 | 18.68 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0800-180-26 | 26.58 | 0800x250x180 | 241 | 15.02 | 24.22 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0600-245-27 | 27.52 | 0600x250x245 | 306 | 14.11 | 20.84 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0650-230-28 | 28.01 | 0650x250x230 | 291 | 14.53 | 21.88 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0850-180-28 | 28.37 | 0850x250x180 | 241 | 15.89 | 25.71 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0550-280-28 | 28.97 | 0550x250x280 | 341 | 14.31 | 20.42 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0650-245-30 | 30.05 | 0650x250x245 | 306 | 15.15 | 22.5 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0900-180-30 | 30.15 | 0900x250x180 | 241 | 16.75 | 27.19 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0700-230-30 | 30.37 | 0700x250x230 | 291 | 15.53 | 23.5 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0600-280-31 | 31.9 | 0600x250x280 | 341 | 15.44 | 22.17 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0950-180-31 | 31.94 | 0950x250x180 | 241 | 17.62 | 28.68 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0700-245-32 | 32.59 | 0700x250x245 | 306 | 16.19 | 24.16 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0750-230-32 | 32.73 | 0750x250x230 | 291 | 16.53 | 25.12 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1000-180-33 | 33.73 | 1000x250x180 | 241 | 18.49 | 30.17 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0650-280-34 | 34.84 | 0650x250x280 | 341 | 16.57 | 23.92 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0800-230-35 | 35.09 | 0800x250x230 | 291 | 17.53 | 26.73 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0750-245-35 | 35.12 | 0750x250x245 | 306 | 17.22 | 25.81 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1050-180-35 | 35.52 | 1050x250x180 | 241 | 19.35 | 31.65 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0850-230-37 | 37.45 | 0850x250x230 | 291 | 18.53 | 28.35 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0800-245-37 | 37.65 | 0800x250x245 | 306 | 18.26 | 27.46 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0700-280-37 | 37.77 | 0700x250x280 | 341 | 17.69 | 25.66 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0900-230-39 | 39.81 | 0900x250x230 | 291 | 19.53 | 29.97 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0850-245-40 | 40.18 | 0850x250x245 | 306 | 19.3 | 29.12 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0750-280-40 | 40.71 | 0750x250x280 | 341 | 18.82 | 27.41 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0950-230-42 | 42.17 | 0950x250x230 | 291 | 20.52 | 31.58 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0900-245-42 | 42.72 | 0900x250x245 | 306 | 20.34 | 30.78 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0800-280-43 | 43.64 | 0800x250x280 | 341 | 19.95 | 29.15 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1000-230-44 | 44.53 | 1000x250x230 | 291 | 21.52 | 33.2 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0950-245-45 | 45.25 | 0950x250x245 | 306 | 21.38 | 32.44 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0850-280-46 | 46.57 | 0850x250x280 | 341 | 21.07 | 30.89 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1050-230-46 | 46.89 | 1050x250x230 | 291 | 22.52 | 34.82 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1000-245-47 | 47.78 | 1000x250x245 | 306 | 22.41 | 34.09 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0900-280-49 | 49.51 | 0900x250x280 | 341 | 22.2 | 32.64 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1050-245-50 | 50.31 | 1050x250x245 | 306 | 23.45 | 35.75 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-0950-280-52 | 52.44 | 0950x250x280 | 341 | 23.33 | 34.39 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1000-280-55 | 55.38 | 1000x250x280 | 341 | 24.45 | 36.13 | 0 | Scarica | Scarica | |||
| KMC-SED-CU-250-1050-280-58 | 58.31 | 1050x250x280 | 341 | 25.58 | 37.88 | 0 | Scarica | Scarica |
Vasca monolitica in cemento armato di forma curva/rettangolare. Contenuto utile da 7,5 fino a 60 m3. Di seguito le singole varianti:
| Codice | Portata (l/s) | Contenuto utile (m3) | Dimensioni esterne (cm) | Profondità d'installazione (cm) | Profondità d'entrata (cm) | Tubo d'ingresso (mm) | Peso max (ton) | Peso totale (ton) | Accumulo olii (m3) | Disegno | Capitolato |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KMC-SED-RC-250-0250-180-07 | 7.5 | 0250X250X180 | 241 | 6.03 | 8.66 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0300-180-09 | 9.29 | 0300X250X180 | 241 | 6.9 | 10.15 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0250-230-09 | 9.92 | 0250X250X230 | 291 | 7.19 | 9.82 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0250-245-10 | 10.64 | 0250X250X245 | 306 | 7.53 | 10.16 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0350-180-11 | 11.07 | 0350X250X180 | 241 | 7.76 | 11.63 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0300-230-12 | 12.28 | 0300X250X230 | 291 | 8.19 | 11.44 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0250-280-12 | 12.35 | 0250X250X280 | 341 | 8.31 | 10.94 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0400-180-12 | 12.86 | 0400X250X180 | 241 | 8.63 | 13.12 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0300-245-13 | 13.18 | 0300X250X245 | 306 | 8.57 | 11.82 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0350-230-14 | 14.64 | 0350X250X230 | 291 | 9.19 | 13.06 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0450-180-14 | 14.65 | 0450X250X180 | 241 | 9.5 | 14.61 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0300-280-15 | 15.28 | 0300X250X280 | 341 | 9.44 | 12.69 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0350-245-15 | 15.71 | 0350X250X245 | 306 | 9.61 | 13.48 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0500-180-16 | 16.44 | 0500X250X180 | 241 | 10.36 | 16.08 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0400-230-17 | 17 | 0400X250X230 | 291 | 10.19 | 14.68 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0350-280-18 | 18.22 | 0350X250X280 | 341 | 10.57 | 14.44 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0550-180-18 | 18.23 | 0550X250X180 | 241 | 11.23 | 17.57 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0400-245-18 | 18.24 | 0400X250X245 | 306 | 10.65 | 15.14 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0450-230-19 | 19.36 | 0450X250X230 | 291 | 11.19 | 16.3 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0600-180-20 | 20.02 | 0600X250X180 | 241 | 12.1 | 19.06 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0450-245-20 | 20.77 | 0450X250X245 | 306 | 11.68 | 16.79 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0400-280-21 | 21.15 | 0400X250X280 | 341 | 11.69 | 16.18 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0500-230-21 | 21.72 | 0500X250X230 | 291 | 12.19 | 17.91 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0650-180-21 | 21.81 | 0650X250X180 | 241 | 12.97 | 20.55 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0500-245-23 | 23.31 | 0500X250X245 | 306 | 12.72 | 18.44 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0700-180-23 | 23.6 | 0700X250X180 | 241 | 13.83 | 22.03 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0550-230-24 | 24.08 | 0550X250X230 | 291 | 13.19 | 19.53 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0450-280-24 | 24.09 | 0450X250X280 | 341 | 12.82 | 17.93 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0750-180-25 | 25.39 | 0750X250X180 | 241 | 14.7 | 23.52 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0550-245-25 | 25.84 | 0550X250X245 | 306 | 13.76 | 20.1 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0600-230-26 | 26.44 | 0600X250X230 | 291 | 14.19 | 21.15 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0500-280-27 | 27.02 | 0500X250X280 | 341 | 13.95 | 19.67 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0800-180-27 | 27.17 | 0800X250X180 | 241 | 15.57 | 25.01 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0600-245-28 | 28.37 | 0600X250X245 | 306 | 14.8 | 21.76 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0650-230-28 | 28.8 | 0650X250X230 | 291 | 15.19 | 22.77 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0850-180-28 | 28.96 | 0850X250X180 | 241 | 16.43 | 26.49 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0550-280-29 | 29.96 | 0550X250X280 | 341 | 15.07 | 21.41 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0900-180-30 | 30.75 | 0900X250X180 | 241 | 17.3 | 27.97 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0650-245-30 | 30.9 | 0650X250X245 | 306 | 15.84 | 23.42 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0700-230-31 | 31.16 | 0700X250X230 | 291 | 16.19 | 24.39 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0950-180-32 | 32.54 | 0950X250X180 | 241 | 18.17 | 29.46 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0600-280-32 | 32.89 | 0600X250X280 | 341 | 16.2 | 23.16 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0700-245-33 | 33.44 | 0700X250X245 | 306 | 16.87 | 25.07 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0750-230-33 | 33.52 | 0750X250X230 | 291 | 17.18 | 26 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1000-180-34 | 34.33 | 1000X250X180 | 241 | 19.03 | 30.94 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0650-280-35 | 35.82 | 0650X250X280 | 341 | 17.33 | 24.91 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0800-230-35 | 35.88 | 0800X250X230 | 291 | 18.18 | 27.62 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0750-245-35 | 35.97 | 0750X250X245 | 306 | 17.91 | 26.73 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1050-180-36 | 36.12 | 1050X250X180 | 241 | 19.9 | 32.43 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0850-230-38 | 38.24 | 0850X250X230 | 291 | 19.18 | 29.24 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0800-245-38 | 38.5 | 0800X250X245 | 306 | 18.95 | 28.39 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0700-280-38 | 38.76 | 0700X250X280 | 341 | 18.45 | 26.65 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0900-230-40 | 40.6 | 0900X250X230 | 291 | 20.18 | 30.85 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0850-245-41 | 41.03 | 0850X250X245 | 306 | 19.99 | 30.05 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0750-280-41 | 41.69 | 0750X250X280 | 341 | 19.58 | 28.4 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0950-230-42 | 42.96 | 0950X250X230 | 291 | 21.18 | 32.47 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0900-245-43 | 43.57 | 0900X250X245 | 306 | 21.03 | 31.7 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0800-280-44 | 44.63 | 0800X250X280 | 341 | 20.71 | 30.15 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1000-230-45 | 45.32 | 1000X250X230 | 291 | 22.18 | 34.09 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0950-245-46 | 46.1 | 0950X250X245 | 306 | 22.06 | 33.35 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0850-280-47 | 47.56 | 0850X250X280 | 341 | 21.83 | 31.89 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1050-230-47 | 47.69 | 1050X250X230 | 291 | 23.18 | 35.71 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1000-245-48 | 48.63 | 1000X250X245 | 306 | 23.1 | 35.01 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0900-280-50 | 50.5 | 0900X250X280 | 341 | 22.96 | 33.63 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1050-245-51 | 51.16 | 1050X250X245 | 306 | 24.14 | 36.67 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-0950-280-53 | 53.43 | 0950X250X280 | 341 | 24.09 | 35.38 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1000-280-56 | 56.36 | 1000X250X280 | 341 | 25.21 | 37.12 | 0 | Scarica | Scarica | |||
| KMC-SED-RC-250-1050-280-59 | 59.3 | 1050X250X280 | 341 | 26.34 | 38.87 | 0 | Scarica | Scarica |
